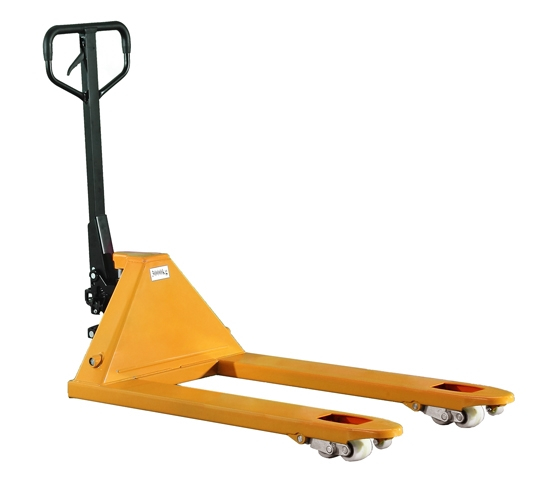

1- 2T Manual Forklift Pallet Truck

Feature & specification:
This series truck add reinforcing rid, increase the load strength, strong and durable.
The main part oil pump adopts quality carbon steel precision casting, go through conditioning, pass pressure Mpa test, no oil leakage, no deformation.
Body is made of carbon structure steel punch forming, go through polishing and galvanized process. durable wear resistant, never fade.
The core part of oil pump is imported, all piston rods are hard-chrome plated. eradicate oil spill disadvantage,durable in use
  • MHP01

  • MHTOOL

  • 8425110000

Color:
Availability:
Quantity:

Product Description

Main technical data:


Articles/model

unit

KX-SDC20

KX-SDC25

KX-SDC30

Q Rated load

kg

2000

2500

3000

Carrying wheel

mm

φ70/60

φ70/60

φ80/70

φ80/70

Steering wheel

mm

φ160/50

φ160/50

φ180/50

φ180/50

h Fork lowest height

mm

75

75

85

85

h1 Max.fork height

mm

190

190

200

200

H1 Overall height

mm

400/450

H Overall height

mm

1185/1230

h2×b Fork size

mm

55/160

L Fork length

mm

1150/1220

B Overall width

mm

550/685

540/685

L1 Overall length

mm

1520/1590

1530/1600

1530/1600

Net weight

kg

55/57.5
59.5/62

58.5/61
63.5/66

56.5/59
60/62.5

60.5/63
64.5/67

67.5/70
77/79.5

72.5/75
82/84.5
